Front Deck Max. Dimensions

• Length 11 feet

• Width 8.5 feet (102")

• Height 8.5 feet (102")


Fl​atbed

This trailer accommodates freight with the maximum legal weight and dimensions shown below.

Maximum Legal Freight Weight:

• 48,000 lbs.

Maximum Legal Freight Dimensions:

• Length 48 feet
• Width 8.5 feet (102")
• Height 8.5 feet (102")


Stretch Single-Drop Deck

This trailer accommodates freight with the maximum legal weight and dimensions shown below.

Maximum Legal Freight Weight:

• 43,000 lbs.


Maximum Legal Freight Dimensions:

Main Deck Max. Dims.

• Length 38-63 feet

• Width 8.5 feet (102")

• Height 10.5 feet (126")


Selection

Front Deck Max. Dims.

• Length 10 feet

• Width 8.5 feet (102")

• Height 8.5 feet (102")


Single Drop-Deck/Stepdeck

This trailer accommodates freight with the maximum legal weight and dimensions shown below.

Maximum Legal Freight Weight:

• 46,000 lbs.


Maximum Legal Freight Dimensions:

Main Deck Max. Dimensions

• Length 37 feet
• Width 8.5 feet (102")
• Height 10.5 feet (126")


Rear Deck Max. Dims.

• Length 9 feet
• Width 8.5 feet (102")
• Height 10 feet (120")

Double-Drop Deck

This trailer accommodates freight with the maximum legal weight and dimensions shown below.

Maximum Legal Freight Weight:

• 45,000 lbs.


Maximum Legal Freight Dimensions:

Main Deck Max. Dims.

• Length 29 feet

• Width 8.5 feet (102")

• Height 11.5 feet (138")

Rear Deck Max. Dims.

• Length 9 feet
• Width 8.5 feet (102")
• Height 10 feet (120")

Equipment Selection Guide

Use this guide to determine the appropriate equipment for your shipment.

Stretch Flatbed

This trailer accommodates freight with the maximum legal weight and dimensions shown below.

Maximum Legal Freight Weight:

• 45,000 lbs.


Maximum Legal Freight Dimensions:

• Length 45-80 feet

• Width 8.5 feet (102")

• Height 8.5 feet (102")


Front Deck Max. Dims.

• Length 10 feet

• Width 8.5 feet (102")

• Height 8.5 feet (102")

Rear Deck Max. Dims.

• Length 9 feet
• Width 8.5 feet (102")
• Height 10 feet (120")

Front Deck Max. Dims.

• Length 10 feet

• Width 8.5 feet (102")

• Height 8.5 feet (102")

Double-Drop w/Detachable Deck (aka Lowboy, RGN)

This trailer accommodates freight with the maximum legal weight and dimensions shown below.​

Maximum Legal Freight Weight:

• 44,000 lbs.


Maximum Legal Freight Dimensions:

Main Deck Max. Dims.

• Length 29 feet

• Width 8.5 feet (102")

• Height 12 feet (144")

Front Deck Max. Dims.

• Length 10 feet

• Width 8.5 feet (102")

• Height 8.5 feet (102")

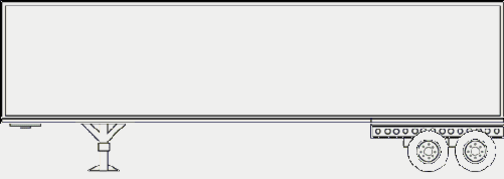

Enclosed Box Trailer (aka Dry Van)

This trailer accommodates freight with the maximum legal weight and dimensions shown below.

Maximum Freight Weight:

• 46,000 lbs.


Maximum Freight Dimensions:

• Length 53 feet
• Width 8 feet 5 inches (100")
• Height 9 feet 2inches (110")


(817) 237-3030        |                  info@ast-freight.com

Stretch Double-Drop Deck

This trailer accommodates freight with the maximum legal weight and dimensions shown below.

​Maximum Legal Freight Weight:

• 40,000 lbs.


Maximum Legal Freight Dimensions:

Main Deck Max. Dims.

• Length 29-50 feet

• Width 8.5 feet (102")

• Height 11.5 feet (138")
